Technical Parameters:
Laser wavelength: 445nm-450nm blue laser
Spot type: retangle spot (fixed focus, NOT FOCUSABLE)
Output power: 7W(sorry , people all sell fake powers here, sell 7W as 15W 10W. its actually 7W only. no highered output available yet. we write 15w , because we need clicks :) .. this laser is fixed focus (not focusable) , for engraving and cutting only. can engranving &marking on stainless stell, very powerful )
Size: 40*70mm
Drive mode: external ACC constant current drive
Cooling method: forced air cooling
Operating voltage: 12V DC

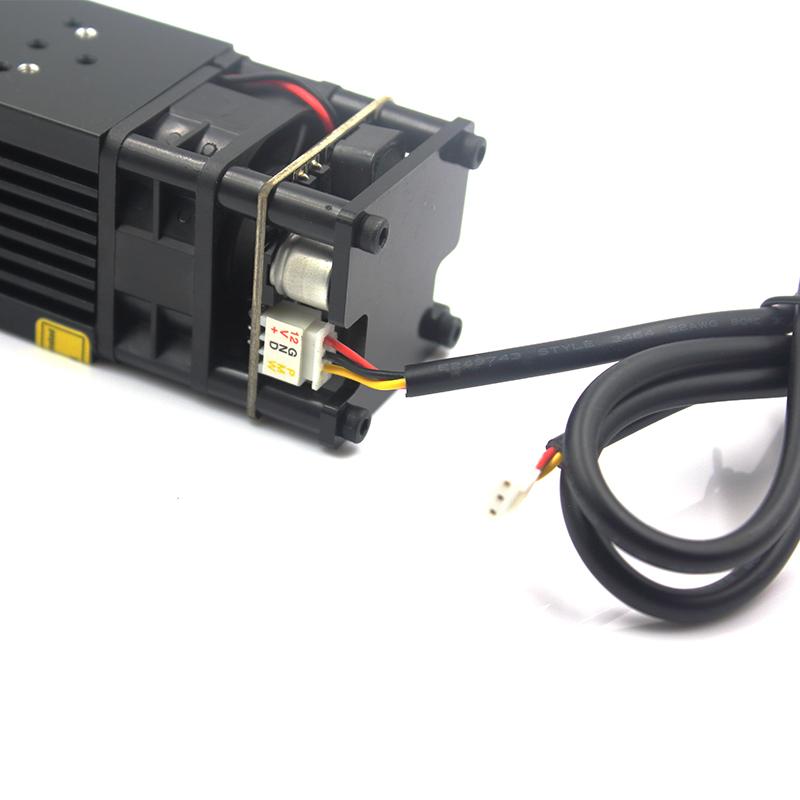

Control interface: 2 * 2.54 (TTL control switch, PWM control power)
Shell material: aluminum, surface anodized

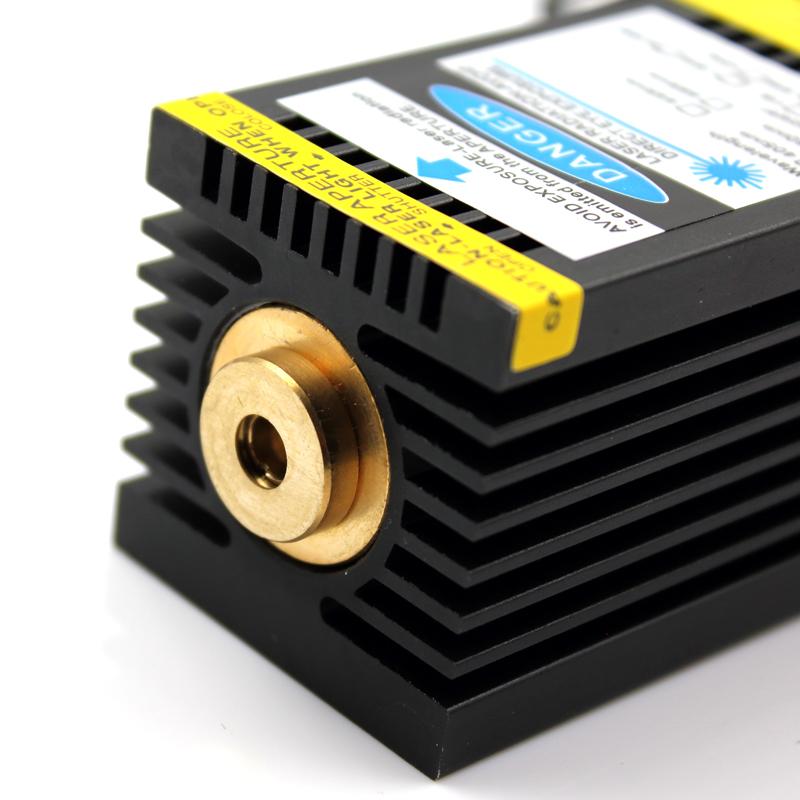

Collimator lens: optical glass coating
THIS IS NOT A FOCUSABLE LASER, this laser is for CNC laser engraving machine or laser cutter only!!
PACKING LIST:
LASER*1
3PIN CABLE*1
SAFETY GLASSES*1
we send heat sink and black heat sink randomly
