Product Description
SPECS:

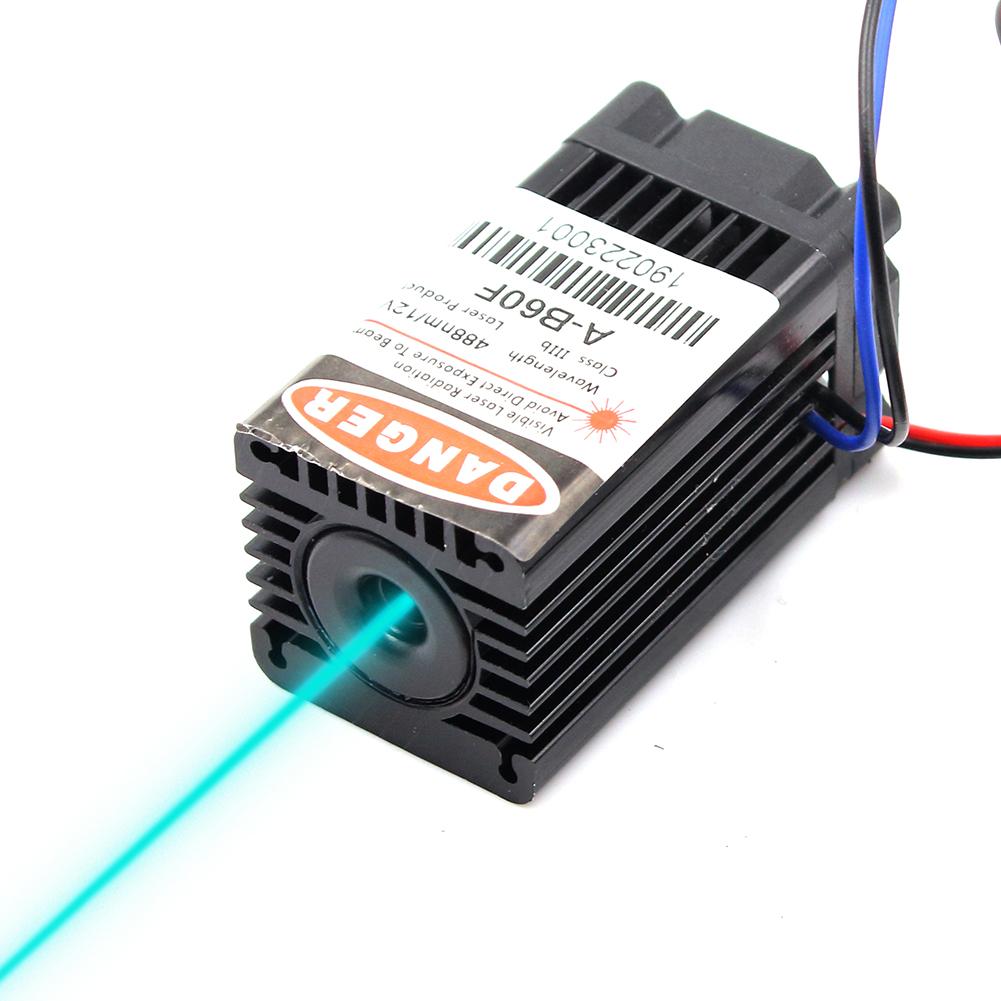

1 Brand: OXLasers
2 Wavelength: 488nm
3 Output power: 100mW(Real Output: 80-100mW)
4 spot pattern: round dot
5 divergence angle ≤1mrad
6 Laser Class Class 3
7 modulation mode TTL modulation (support TTL/PWM 0-5V)
8 input stability ±5%
9 Laser input voltage 7V
10 current 180mA
11 rated power consumption 2.1W
12 Recommended ambient temperature -10~40°C
15 size 30*30*45mm
Working Voltage: 12V DC
Packing List:
488nm laser*1
Driver Board*1
12V 2A Power Adapter Plug*1
DC-2PIN connect wire*1
